ANALYSIS OF THE EU HOMOLOGATION OF LPG/ CNG/ GNG COMPONENTS USED IN PROPULSION SYSTEM OF VEHICLE

ANALYSIS OF THE EU HOMOLOGATION OF LPG/ CNG/ GNG COMPONENTS USED IN PROPULSION SYSTEM OF VEHICLE

RELEASE DATE：2021-06-16 16:02
Brief: According to the EU vehicle framework regulation (EU) 2018/858 and its invocate Regulation (EC) No 661/2009 (the equivalent regulation is UN ECE R67 & R110), the LPG/ CNG/ GNG components used in the propulsion system of the vehicles of category M and N need to be type-approved as components firstly and then, they can be put on the EU market.



THE PROCEDURE OF TYPE APPROVAL
1. Documents Preparation
2. Factory Audit (This step can be exempted if the manufacturer hold a valid ISO 9001:2015/IATF1694:2009 certificate)
3. Samples Preparation and Testing
4. Assessment of Information
5. Issuance of Certificate

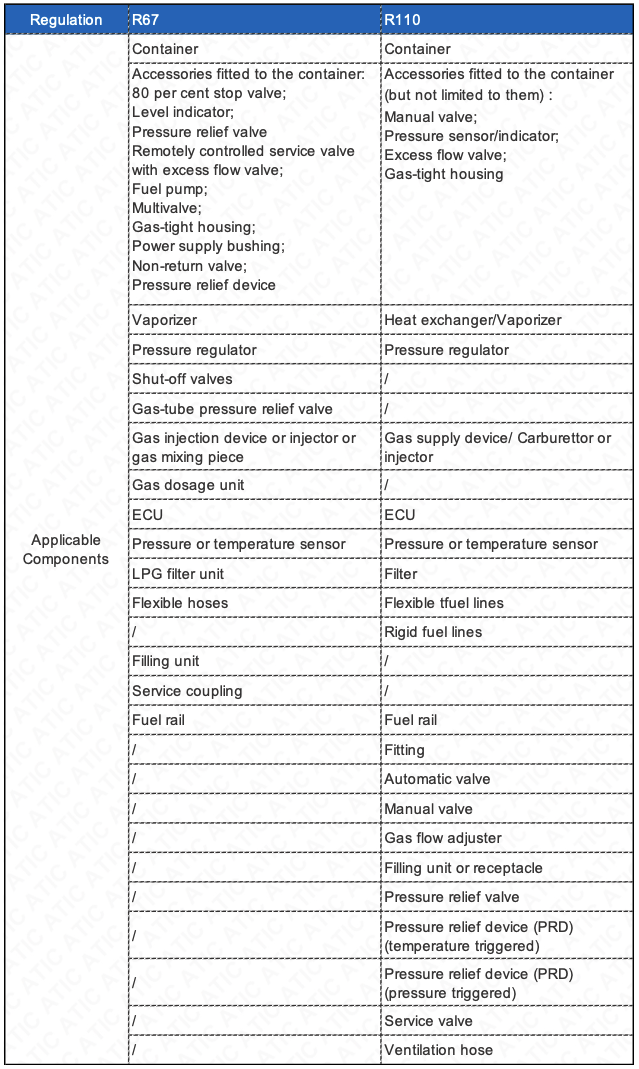

APPLICABLE COMPONENTS

Regulation
R67
R110
Applicable
Components







Container
Container
Accessories fitted to the container:
80 per cent stop valve;
Level indicator;
Pressure relief valve
Remotely controlled service valve with excess flow valve;
Fuel pump;
Multivalve;
Gas-tight housing;
Power supply bushing;
Non-return valve;
Pressure relief device
Accessories fitted to the container (but not limited to them)：
Manual valve;
Pressure sensor/indicator;
Excess flow valve;
Gas-tight housing
Vaporizer
Heat exchanger/Vaporizer
Pressure regulator
Pressure regulator
Shut-off valves
/
Gas-tube pressure relief valve
/
Gas injection device or injector or gas mixing piece
Gas supply device/ Carburettor or injector
Gas dosage unit
/
ECU
ECU
Pressure or temperature sensor
Pressure or temperature sensor
LPG filter unit
Filter
Flexible hoses
Flexible tfuel lines
/
Rigid fuel lines
Filling unit
/
Service coupling
/
Fuel rail
Fuel rail
/
Fitting
/
Automatic valve
/
Manual valve
/
Gas flow adjuster
/
Filling unit or receptacle
/
Pressure relief valve
/
Pressure relief device (PRD) (temperature triggered)
/
Pressure relief device (PRD) (pressure triggered)
/
Service valve
/
Ventilation hose

TESTING REQUIREMENTS

CNG/LNG components are classified as Class0~5 according to the working pressure, and the testing items of the different categories are as follows. For specific items, please contact ATIC.

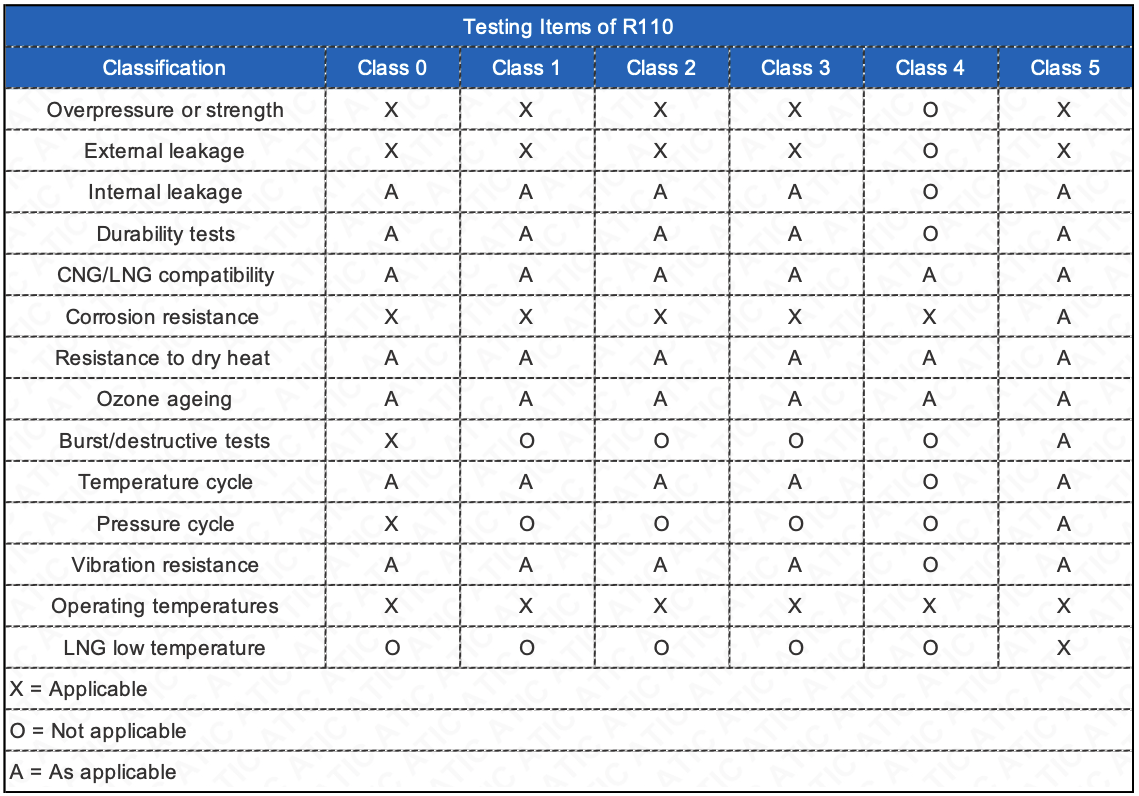

Testing Items of R110
Classification
Class 0
Class 1
Class 2
Class 3
Class 4
Class 5
Overpressure or strength
X
X
X
X
O
X
External leakage
X
X
X
X
O
X
Internal leakage
A
A
A
A
O
A
Durability tests
A
A
A
A
O
A
CNG/LNG compatibility
A
A
A
A
A
A
Corrosion resistance
X
X
X
X
X
A
Resistance to dry heat
A
A
A
A
A
A
Ozone ageing
A
A
A
A
A
A
Burst/destructive tests
X
O
O
O
O
A
Temperature cycle
A
A
A
A
O
A
Pressure cycle
X
O
O
O
O
A
Vibration resistance
A
A
A
A
O
A
Operating temperatures
X
X
X
X
X
X
LNG low temperature
O
O
O
O
O
X
X = Applicable; O = Not applicable; A = As applicable

We ATIC provide UN type approval service for the manufacturers of vehicle components by direct co-operation with approvals authorities without communication barriers.
