BRIEF ANALYSIS OF BLIND SPOT MONITORING SYSTEM

BRIEF ANALYSIS OF BLIND SPOT MONITORING SYSTEM

RELEASE DATE:2022-05-27 18:50
BriefBlind Spot Monitoring System is a new high-tech configuration in cars to enhance driving safety. The main function is to eliminate the blind spot in the rearview mirror, through the camera, millimeter wave radar and other detection and identification of the vehicle in the front and rear of the blind spot range of pedestrians, bicyclists and other vulnerable road users (VRU), determine the possible danger when The system will alert the driver in time to avoid accidents.

The European Union has issued three regulations on blind zone monitoring, namely UN ECE R151, UN ECE R158 and UN ECE R159, and all three regulations will be enforced on July 6, 2022. UN ECE R151 Blind spot information system (BSIS) is mainly to monitor the right side of the left-hand drive vehicle blind zone; UN ECE R158 device for reversing motion is mainly to monitor the blind zone behind the vehicle when reversing; UN ECE R159 Moving-Off Information Systems (MOIS) is mainly to monitor the blind zone in front of the vehicle.

ATIC has the complete certification program for Blind Spot Information System, It is recommended that customers in need can deploy in advance for certification.



THEMATIC CERTIFICATION SCHEME FOR BLIND SPOT MONITORING SYSTEM

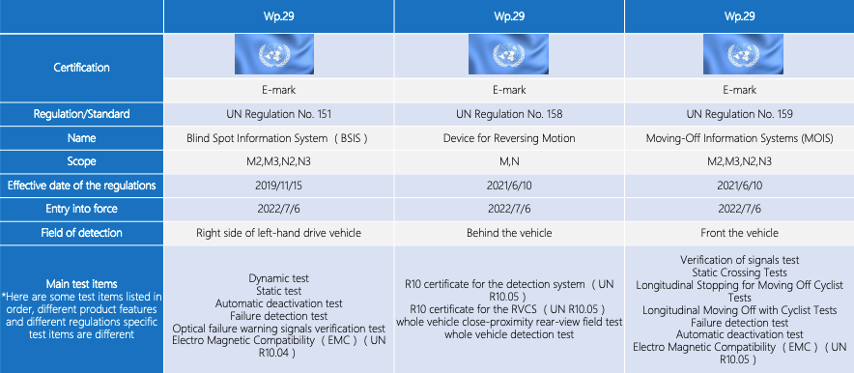

ATIC has sorted out the blind spot monitoring system thematic matrix from the legal requirements, applicable models, monitoring scope, test items, etc. as follows:



THE SYSTEM IS BRIEFLY ANALYZED AS FOLLOWS
UN R151 Blind Spot Information System (BSIS):On November 15, 2019, the Blind Spot Information System BSIS regulation UN R151 officially came into force, and its addendum Amendment 1 officially came into force on September 25, 2020, and recently on July 6, 2021 the United Nations has issued a new addendum Amendment 2, Amendment 2 has officially come into force on June 9, 2021, the document officially revised the scope of application of the blind spot information system, expanding the scope of application from vehicles of categories N2 (> 8 t of technically permissible maximum mass) and N3 to M2, M3, N2, and N3. The regulation will be mandatory for M2, M3, N2, N3 new models on July 6, 2022.
Field of detection:The monitoring range of R151 is the right side blind zone of the left-hand drive vehicle, mainly to remind the driver that there are pedestrians or bicycle riders within the blind zone when the vehicle is about to turn right, so as to avoid accidents.

UN R158 Devices for Reversing Motion:The purpose of this Regulation is to provide the provisions for reversing motion concerning on awareness of vulnerable road users proximity. UN Regulation No. 46. provides the provisions for indirect vision of motor vehicles. This Regulation expands driver’s vision or awareness for vehicle rear direction when in reversing motion. Therefore, some requirements of this Regulation may be satisfied by devices complying with UN Regulation No.46. The regulation has entered into force on June 10, 2021 and will be enforced on July 6, 2022.
Field of detection:R158 monitoring range is mainly for the rear side of the vehicle's blind spot, when backing up, if the traditional rearview mirror drivers are unable to observe the situation on the rear side of the vehicle, will cause the corresponding accident risk. Common model configurations are rear parking radar + rear reverse image or rear parking radar + 360 ° panoramic visual parking assistance system.

UN R159 Moving-Off Information Systems (MOIS):"Moving Off Information System (MOIS)" means a system to detect and inform the driver of the presence of pedestrians and cyclists in the close-proximity forward blind-spot of the vehicle and, if deemed necessary based on manufacturer strategy, warn the driver of a potential collision. The regulation has entered into force on June 10th, 2021 and is applicable to M2,M3,N2,N3. The regulation will be mandatory for M2, M3, N2, N3 new models on July 6, 2022.
Field of detection:The monitoring range of R159 is the blind zone in front of the vehicle, this is usually when the vehicle starts from a standstill or at a speed of no more than 10km/h at low speed in a straight line, the MOIS system will detect and inform the driver of the presence of pedestrians and bicyclists in the front of the vehicle in the close blind zone.

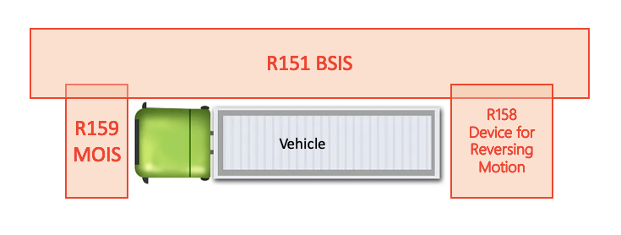

The monitoring scopes of these three systems are simplified as follows:



CERTIFICATION SERVICE PROVIDED BY ATIC
ATIC's vehicle certification experts have an average of more than 10 years of experience in motor vehicle certification, and are familiar with multinational certification processes, local regulations, and testing requirements. ATIC cooperates with multinational official organizations and integrates high-quality testing and certification resources, to provide a global one-stop certification service for manufacturers to complete the certification cycle, including certification application, documentation preparation, regulatory guidance and training, and pre-testing and test arrangement, etc. With the best service and the fastest efficiency, AITC assists the manufacturers to enter the global market with one-stop certification. ATIC experts are working under designated technical services in Europe to conduct Initial Assessment, Witness Testing and CoP assessment as authorized inspectors by authorities including e/E5 Sweden, e/E24 Ireland, e/E49 Cyprus, e/E32 Latvia, e/E36 Lithuania and E57 San Marino. ATIC serve more than 200 whole vehicle and component manufactures each year in China.

ATIC GLOBAL HOMOLOGATION RESEARCH AND VEHICLE CERTIFICATION DEPARTMENT
ATIC Automotive Regulation Research and Vehicle Homologation Product Line is dedicated to global automotive regulation research, homologation procedure research and WVTA homologation project management.
Based on ATIC digital platform, our team provides a series of automotive compliance services including market access solutions, technical review, regulation interpretation, regulation database and update, training and Q&A, etc.
ATIC homologation experts are nominated by European technical service and authorities covering all EU/UN regulations for M/N/O/T/L/NRMM category vehicle, system, component and separate technical unit. Authorities includes Netherlands (e/E4), Sweden (e/E5), Luxembourg (e/E13), Ireland (e/E24) and Cyprus (e/E49).
ATIC is long-term compliance and homologation service provider for GWM, GEELY, SAIC MOTOR, BYD, XPENG, NIO, RIMAC, Smart etc. top domestic and international OEMs, and HUAWEI, CATL, SVOLT, FINDREAMS etc. system and component manufactures.
