Brief: In March this year, the EU issued a draft amendment based on EU 2018/858, the definition of "Scheme I and Scheme II" was introduced for small series vehicles. For the implementation of the new regulation EU 2019/2144, a two-year transition period (July 7, 2024) is provided for the application of new type approval for small series and special purpose vehicles, and an additional two-year transition period (July 7, 2026) is provided for new vehicle’s registration.



TRANSITIONAL PROVISIONS

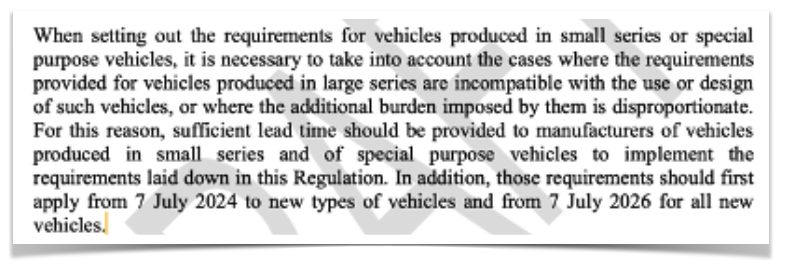

According to the draft amendment, for small series vehicles andspecial purpose vehicles, for the implementation of the new EU 2019/2144 regulation, a transition period of two years is provided for the application for type approval of new types (commencing on July 7, 2024), with an additional two-year transition period for new vehicle’s registration (commencing on July 7, 2026).


NEW DEFINITION IN THE DRAFT AMENDMENT

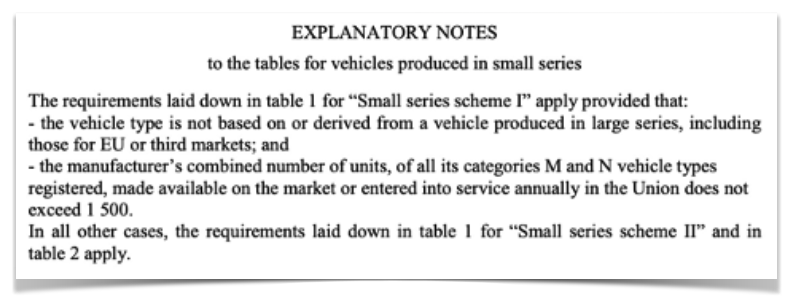

Small series scheme I apply provided that: the vehicle type is not based on or derived from a vehicle produced in large series, including those for EU or third markets; and the manufacturer’s combined number of units, of all its categories M and N vehicle types registered, made available on the market or entered into service annually in the Union does not exceed 1500.

Small series scheme II refers to situations other than those defined by "Scheme I".

It is important to note that the small series vehicles quantity limit of 1500 defined in Scheme I includes all types of M and N vehicles that the manufacturer puts into the EU market each year, not for a specific type. Scheme I limits the number of vehicles a manufacturer can put on the EU market, and also restricts the type from being a unlimited series type.


LIST OF APPLICABLE REGULATIONS FOR SCHEME II VEHICLES
For M1 vehicles produced by Chinese manufacturers and exported to the EU in small series, they generally belong to the category of Scheme II. The new GSR technical regulations applicable to Scheme II and the implementation time are shown in the table below.

No.
Regulation No.
Item
M1
N1
A21
UN R137
Frontal full-width impact 100%
New type:07/07/2024
New registration:07/07/2026
New types:07/07/2024
New registration:07/07/2026
A26
UN R135
Pole side impact
New types:07/07/2024
New registration:07/07/2026
New types:07/07/2024
New registration:07/07/2026
A27
UN R153
Rear impact
New types:07/07/2024
New registration:07/07/2026
New types:07/07/2024
New registration:07/07/2026
B4
UN R152
Advanced emergency braking on light-duty vehicles
New types:07/07/2024
New registration:07/07/2026
New types:07/07/2024
New registration:07/07/2026
B7
UN R158
Reversing detection
New types:07/07/2024
New registration:07/07/2026
New types:07/07/2024
New registration:07/07/2026
C3
(EU) 2021/646
Emergency lane keeping system
New types:07/07/2024
New registration:07/07/2026
New types:07/07/2024
New registration:07/07/2026
D8
(EU) 2021/1958
Intelligent speed assistance
New types:07/07/2024
New registration:07/07/2026
New types:07/07/2024
New registration:07/07/2026
D16
UN R48
Emergency stop signal
New types:07/07/2024
New registration:07/07/2026
New types:07/07/2024
New registration:07/07/2026
E1
(EU) 2021/1243
Alcohol interlock installation facilitation
New types:07/07/2024
New registration:07/07/2026
New types:07/07/2024
New registration:07/07/2026
E2
(EU) 2021/1341
Driver drowsiness and attention warning
New types:07/07/2024
New registration:07/07/2026
New types:07/07/2024
New registration:07/07/2026
E5
UN R160;
(EU) 2022/545
Event data recorder
New types:07/07/2024
New registration:07/07/2026
New types:07/07/2024
New registration:07/07/2026
D4
UN R155
Cyber security and cyber security management system
New types:07/07/2024
New registration:07/07/2026
New types:07/07/2024
New registration:07/07/2026
H2
UN R156
Software update and software updates management system
New types:07/07/2024
New registration:07/07/2026
New types:07/07/2024
New registration:07/07/2026
